On occasion of the Euronaval exhibition, taking place in Paris, France, from October 18 to 21, 2022, Leonardo has launched its new electro-optical system that protects naval assets from multiple threats.
The new system is called DSS-IRST (Distributed Static Staring-InfraRed Search and Tracking System), a next-generation technology developed by the company to provide larger naval units, such as the Italian Navy's new LHD “Trieste” and Pattugliatori Polivalenti d’Altrura (PPA), with state-of-the-art capabilities and performance for dealing with multiple, long and short-range surface, missile and airborne threats along coastal areas (Littoral) and on the open sea (Blue Water).

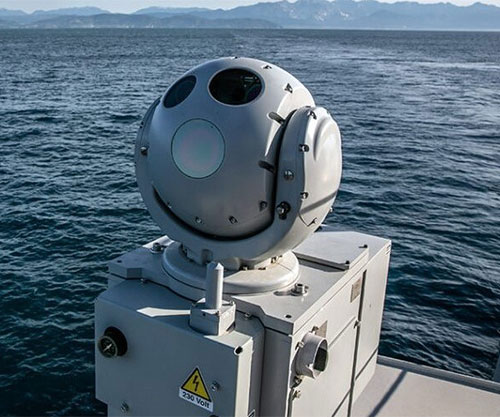

As well as fulfilling the requirements of a traditional IRST system, the modular architecture of Leonardo's new product allows for true 360° coverage through the positioning of four mechanically stabilized, static (non-rotating) Search Head Units (SHUs). Lightweight and compact, these SHUs deliver high-resolution performance, together with an azimuthal range of 90° each. The new-generation IRST is also equipped with three additional electro-optical (EO), Directional Head Units (DHUs) for the confirmation of acquired traces – an element that enables the system to minimize the False Alarm Rate, identify targets and, assisted by the SHUs, also provide active and passive measurement of their distance.
More specifically, thanks to new hardware and software technologies developed through Leonardo's ongoing investments in key domains, like Artificial Intelligence, autonomous systems, big data processing and information management, the DSS-IRST is able to simultaneously detect and track symmetric (e.g., sea skimming missiles) and asymmetric (e.g., MPADS, small vessels) targets, automatically applying the best algorithm for each specific scenario.
The DSS-IRST has been designed as a principal support for navigational and maritime situational awareness, even when the vessel on which it is installed is operating in silent mode (EMCON). In fact, in this case, the system is able to provide 360° IR panoramic, HD video footage with cinematic-quality resolution (frame rate), 24 hours a day, while also maintaining the operational ability to detect and track multiple targets and generate CMS traces in 3D, thanks to its passive target distance measurement (Passive Ranging) feature. Furthermore, given the possibility to adjust the elevation of the SHUs, the DSS IRST can also be used to support Search and Rescue (SAR) or anti-intrusion Harbor Surveillance operations.
As well as the four Search Head Units and Directional Head Units, Leonardo's Distributed Static Staring-InfraRed Search and Tracking System principally consists of two Data and Video Management Units and a Local Console Unit (optional). In the standard configuration, the system operates in integration with a ship's Combat Management System (CMS) and has been specifically designed to respond to the new multi-domain requirements of naval forces.
Leonardo is leader in Electro-Optical technologies and systems, providing high-performance products for the most demanding customers’ requirements worldwide. This position is based on the company’s research and manufacturing experience in the core elements of an EO system including its infrared detector, stabilized EO director and image processing algorithms. The company has a great deal of integration expertise installing EO products on naval vessels, land vehicles and avionic platforms.
Leonardo’s complete solutions for naval domain included naval Command & Control systems, weapon systems, sensors, underwater systems, optronic, maritime communication systems, aircraft, helicopters, unmanned systems and space communication. With its technologies Leonardo is able to satisfy all the mission requirements for any type of ship, class and tonnage.
Leonardo, a global high-technology company, is among the top world players in Aerospace, Defense and Security and Italy’s main industrial company. Organized into five business divisions, Leonardo has a significant industrial presence in Italy, the United Kingdom, Poland and the USA, where it also operates through subsidiaries that include Leonardo DRS (defense electronics), and joint ventures and partnerships: ATR, MBDA, Telespazio, Thales Alenia Space and Avio.
Leonardo competes in the most important international markets by leveraging its areas of technological and product leadership (Helicopters, Aircraft, Aerostructures, Electronics, Cyber & Security Solutions and Space). In 2021Leonardo recorded consolidated revenues of €14.1 billion and invested €1.8billion in Research and Development.
